Description

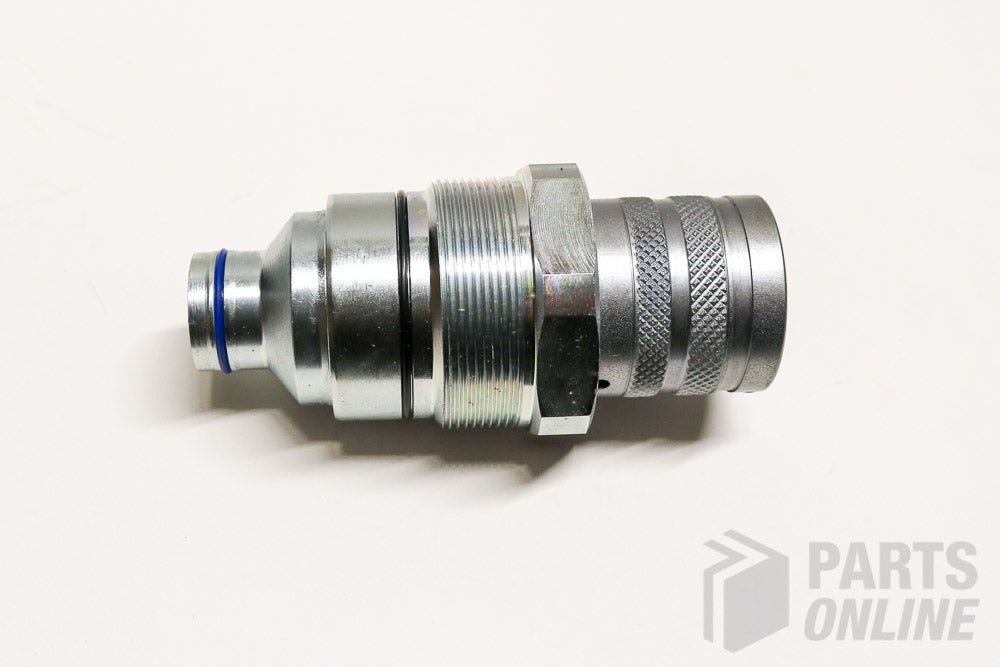

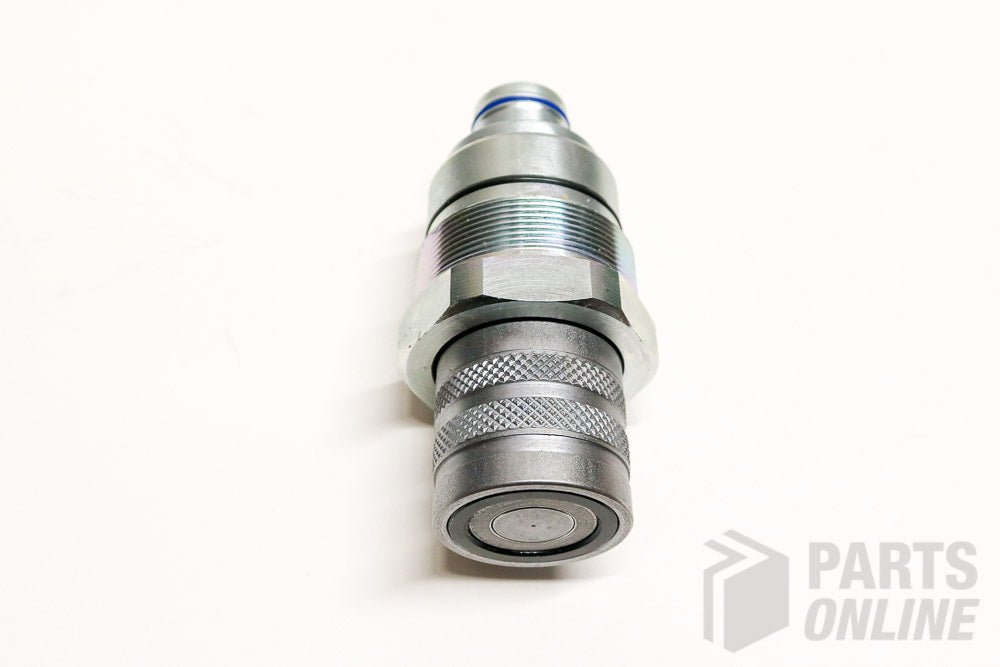

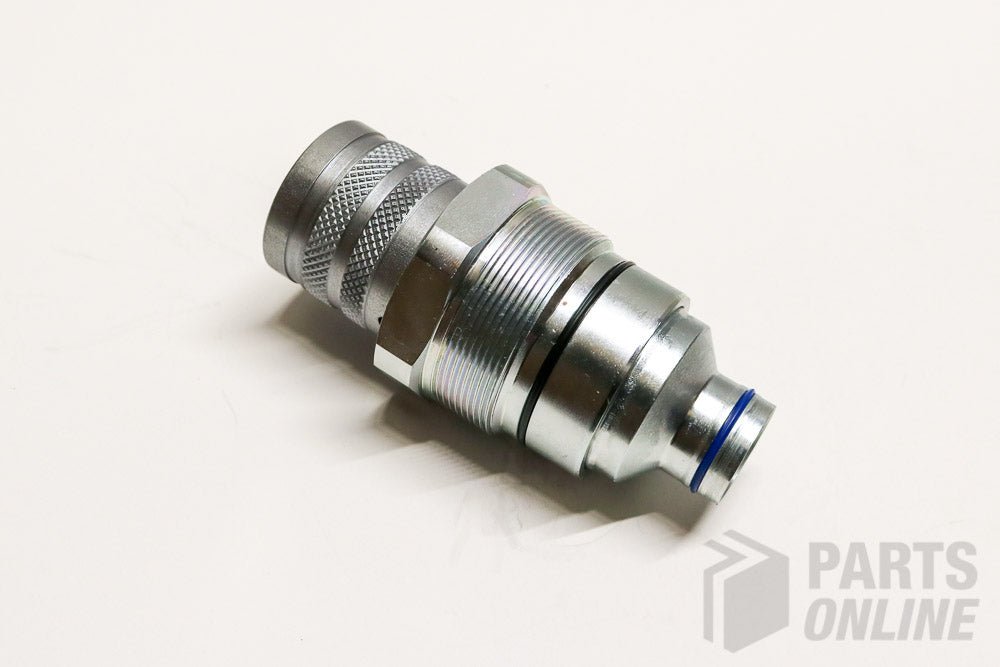

Replacement Cartridge for flat faced coupler
Fits the following Bobcat Equipment:
Articulated Loaders: L23, L28
Compact Wheel Loader: L65, L75, L85
Excavators: E32, E32i, E34, E35, E35Z, E35i, E37, E42, E45, E50, E55
Skid Steer Loaders: 753, 763, 773, 863, 864, 883, A220, A300, A770, S130, S150, S160, S175, S185, S205, S250, S300, S450, S510, S530, S550, S570, S590, S595, S62, S630, S64, S650, S66, S740, S750, S76, S770, S850
Track Loaders: T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T62, T630, T64, T650, T66, T740, T750, T76, T770, T870
Mating ends of the newer couplers are compatible with older style couplers, allowing old and new couplers to connect with each other. However, an FFI coupler will not function in an FFH block and vice versa.
1/2 inch body size
Push to connect
Kidney latch
This part supersedes 7249643 and is a direct replacement
Parts can vary depending on your serial number. Fill out the contact form here to ensure the correct part for your equipment.
